Learn how to create, adjust, and edit columns to get the look and flow you want for your page’s design.

Columns help you control your page layout by dividing sections into smaller areas where you can place content. They enable you to arrange text, images, and other components next to each other, giving your page structure and balance.

Key details

  • Placement: Columns sit inside sections and define the structure for your content.
  • Layout: Each section can include one to four columns, arranged side by side.
  • Components: Text, images, videos, and other elements can only be placed inside columns.
  • Sizing: The width of a column controls the maximum size of the components inside it.

Add columns to pages

In your Page Builder:

  1. Add a section.
  2. Go to Components > Columns in the left-side menu.
  3. Choose a column layout.
  4. Drag it into your section and drop it over a “Drop Here” area when it turns green.
  5. Repeat as needed to add different column layouts to other sections.

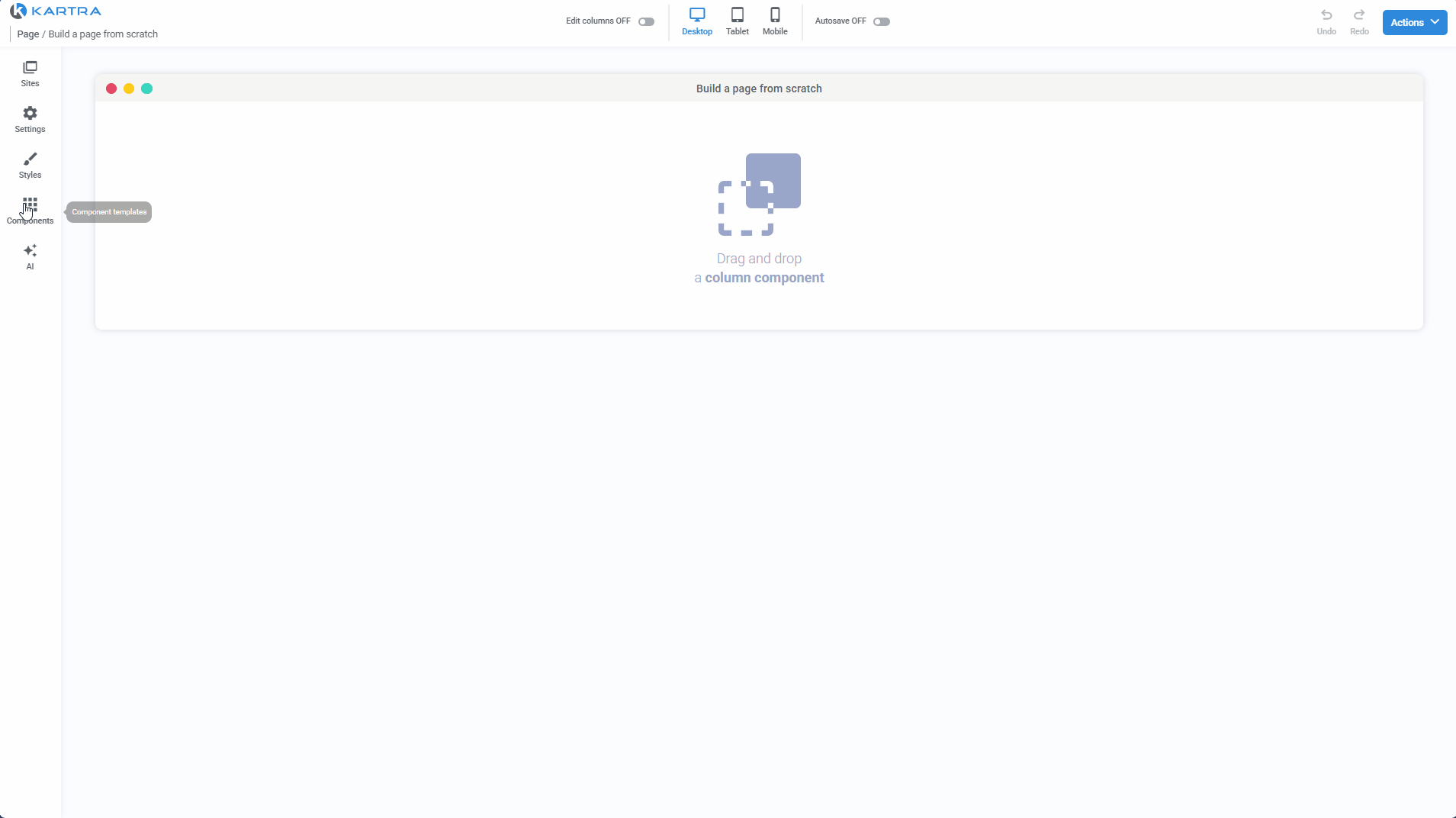

Dragging a column layout from the Columns menu into a section in the Kartra Page Builder until the “Drop Here” area turns green.

Default column width layouts

These presets determine how columns divide space within a section.

One column:

  • 100% width
  • 66% width
  • 50% width

Two columns:

  • 50% - 50%
  • 33% - 66%
  • 66% - 33%

Three columns:

  • 33% - 33% - 33%
  • 50% - 25% - 25%
  • 25% - 25% - 50%
  • 25% - 50% - 25%

Four columns:

  • 25% - 25% - 25% - 25%

Edit columns

Toggle Edit columns ON in the top builder menu to modify the layout.

Edit columns toggle enabled in the Kartra Page Builder top menu.

When column editing is active:

  • Blue outlines mark individual columns.
  • A green outline marks the row containing those columns.
  • Each level (column and row) has its own customization options.

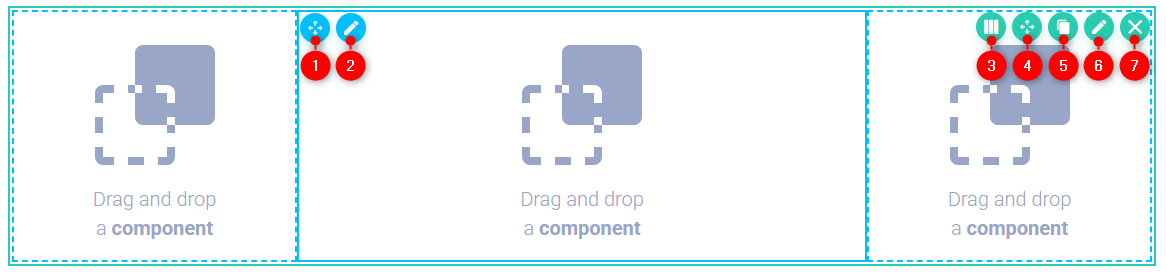

Column and row outlines visible in the Kartra Page Builder with numbered editing tools for column and row customization.

Column customization

  • Drag (#1): Move the column to a different spot.
  • Edit (#2): Open styling options such as padding, borders, background, corner radius, and alignment.

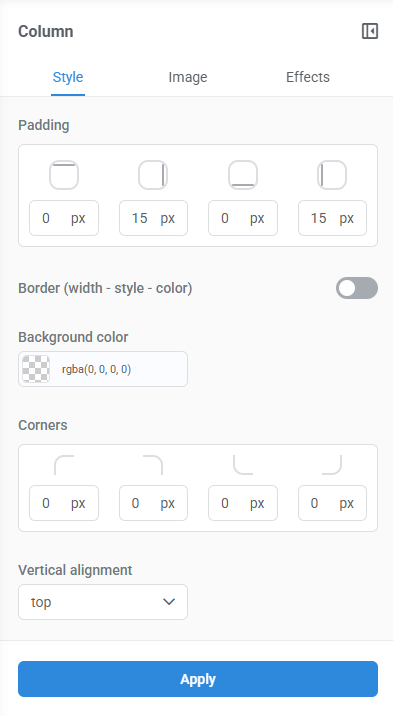

Column customization panel in Kartra showing options for padding, borders, background, and alignment.

Row customization

  • Column width (#3): Adjust the width of columns within the row. Drag the column width handles to expand or contract the column.

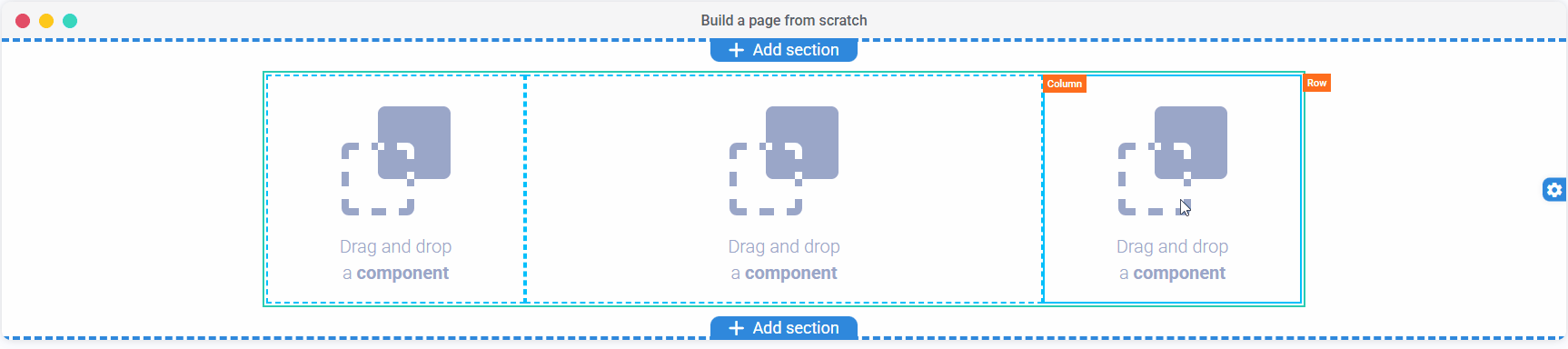

Adjusting column width by dragging the handles on top of columns in Kartra’s Page Builder.

  • Drag (#4): Move the entire row to another position within or across sections.
  • Clone (#5): Duplicate the row.
  • Edit (#6): Apply styling options (similar to column editing) to the whole row.
  • Delete (#7): Remove the row.
Important:

Deleting a row also deletes all components placed inside it.
